Artillery Sidewinder X1 V4 (FDM)

$569.95 Inc. GST

Approximate Cryptocurrency Prices:
· BTC: 0.006231

Out of stock

Email when stock available

Description

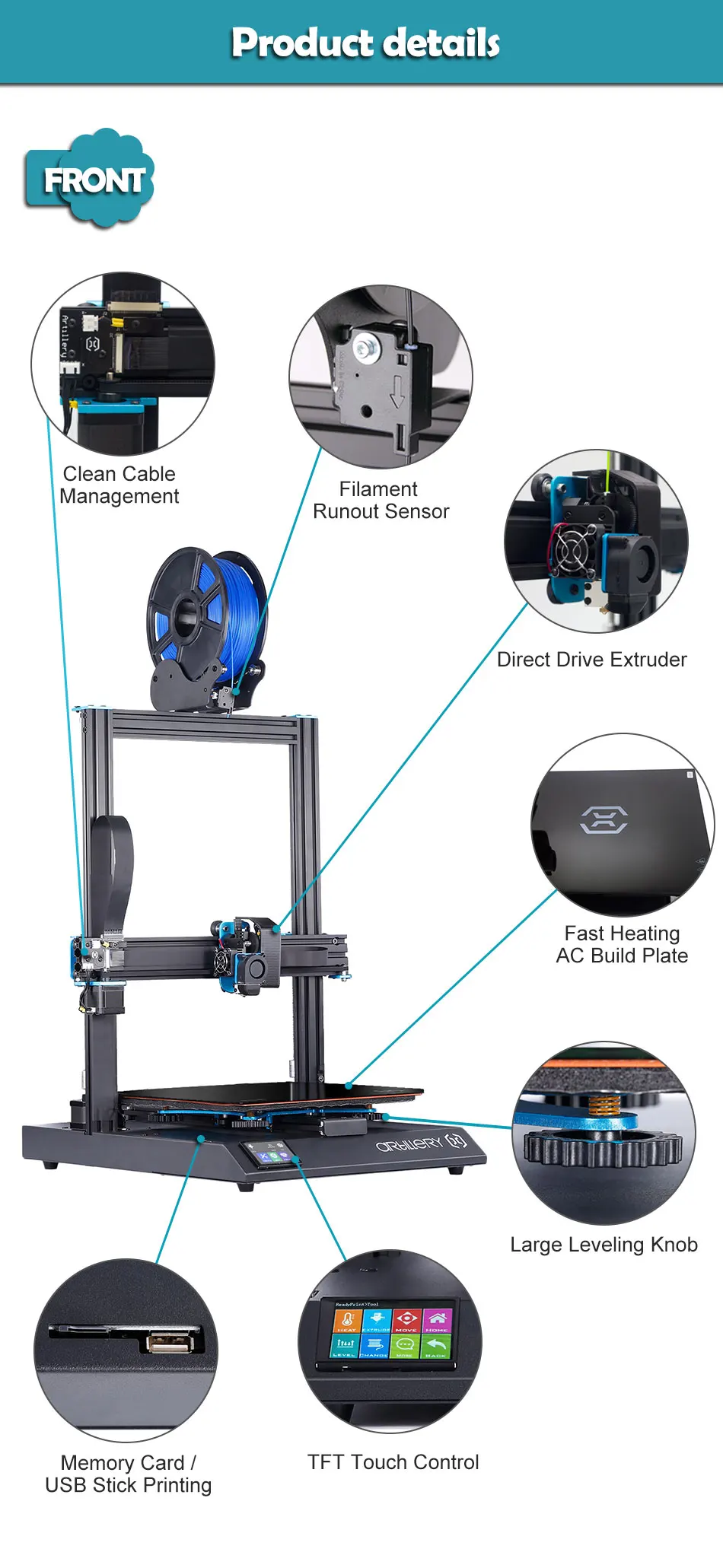

The Artillery Sidewinder X1 is an all-in-one Cartesian 3D printer with ultra-quiet stepper drivers, a direct drive extruder, a dual Z axis, AC heated glass-ceramic bed (very flat surface), TFT touch screen, and magnetic proximity end stop sensor to provide long service life and quiet, Accurate 3D printing.

Product Features:

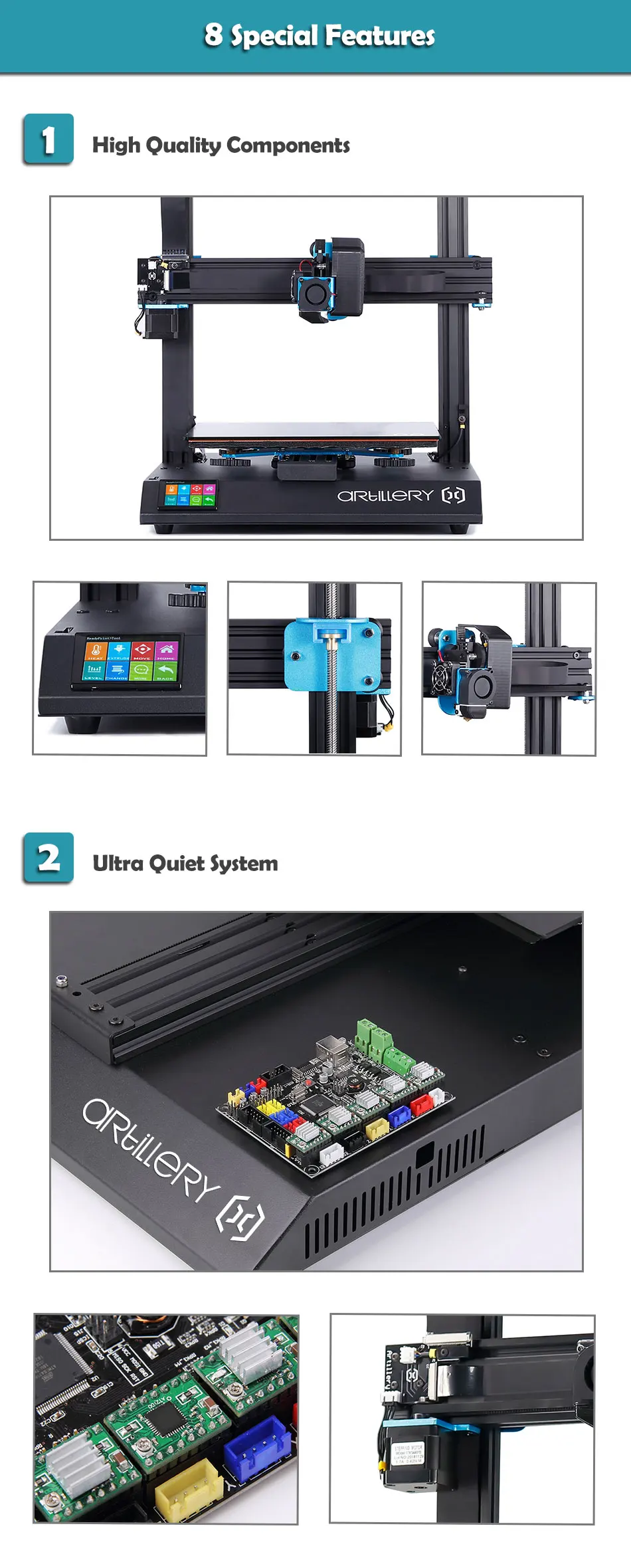

3dpsabullet Ultra-quiet Stepper Driver

3dpsabullet Synchronized Dual Z System

3dpsabullet Touch Screen Control

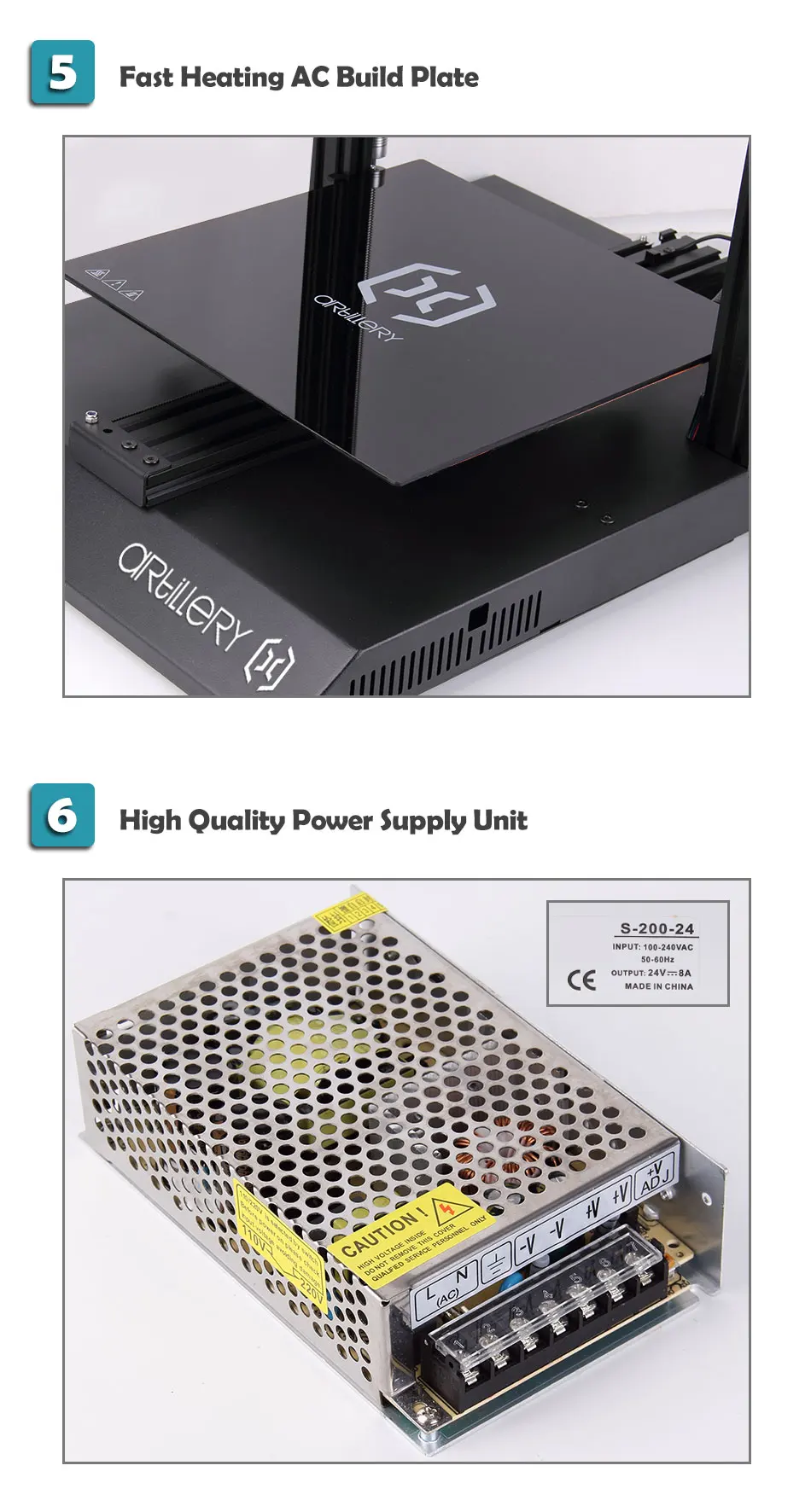

3dpsabullet Rapid Heating AC heated bed

3dpsabullet Power Loss Detection and Recovery

3dpsabullet Filament Runout Detection and Recovery

3dpsabullet 95% pre-assembled, easy for installation

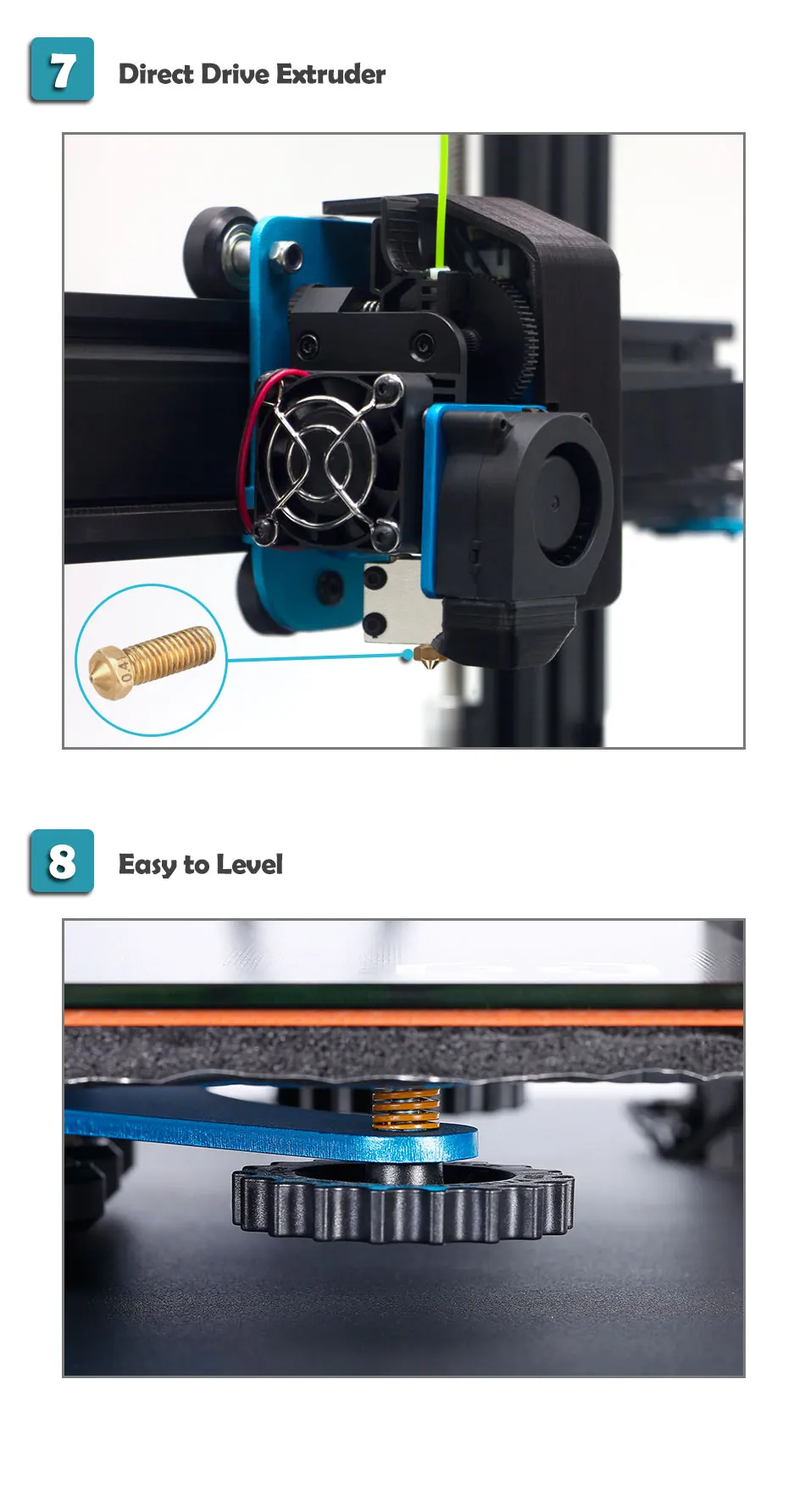

3dpsabullet Titan style direct-drive extruder to support flexible materials

Additional information
Machine Size

550 × 405 × 640 mm

Build Size

300 x 300 x 400mm

Printing Technology

Fused Deposition Modelling (FDM)

Max extruder temperature

240℃

Heating Plate

110C

Supported Material

PLA, PETG, TPU, *ABS, Wood PLA, *ABS needs to be printed with at least 100C bed temperature and with an enclosure

Print Precision

X/Y 0.0125mm Z 0.05mm

Layer Resolution

0.08~0.32 mm

Nozzle Diameter

0.4mm

Speed

25-150mm/s

Connection

USB Flash drive

Supported Operating System

MAC, LINUX, WIN7/8/10

Compatible software

Simplify 3D, Ultimaker Cura, Prusa Slicer, Slic3r, Ideamaker

Supported File Format

STL, OBJ, 3MF, X3D, GCODE

Input Power

240 VAC – 50/60 HZ

Weight

16.5kg

Package Dimension

780 x 540 x 250 mm

Warranty

Twelve (12) months Warranty for defective parts against manufacturing.Excluded from the warranty are consumable parts such as nozzles, PTFE tube, bed plate

Technical FAQs

Any 3rd Party Upgrades or Repairs done on the machine without the supervision or approval from our WhizKids - Technical Support Team will void the warranty of the printers. Please consult with us before proceeding with any upgrades or repairs.

  • Motor Shaking/ Motor making abnormal grinding sounds

    - The home endstops are not getting triggered - make sure that there is object in between the endstops - Motor Cable not connected Properly - re-plug the cables back in and try again
  • File not detected / Memory Card Failure

    - The printer can only read .GCODE files, please slice the models first - Wrong file system format (It should be FAT32) - Corrupted SD card
  • No Filament being Extruded / Extruder motor making a knocking sound

    - Nozzle temp has not set to match the filament's recommended settings (Please run a temperature tower) - Tangled Filament Spool - Not enough cooling for the hotend (Heat Creep) - Nozzle Clog
  • Filament Leaking

    - Nozzle is not sitting flush against the heat break (throat) - PTFE Tube not sitting flush against the nozzle
  • Prints not sticking to the bed

    - Printer not leveled (Poorly Leveled) - Printing too fast (Recommended 20-40mm/s initial layer speed) - Insufficient Bed temperature
  • Warping / Curling of the printed object

    - Insufficient Bed temperature - Not enough contact area between the model and the heated bed
  • Layer shifting

    - Belts not tightened properly - Printing too fast
  • Print stopped halfway

    - Min/Max error: Check thermistor cables - Corrupted GCODE - Bad SD card
